PWI-T DESKTOP WEIGHING INDICATOR

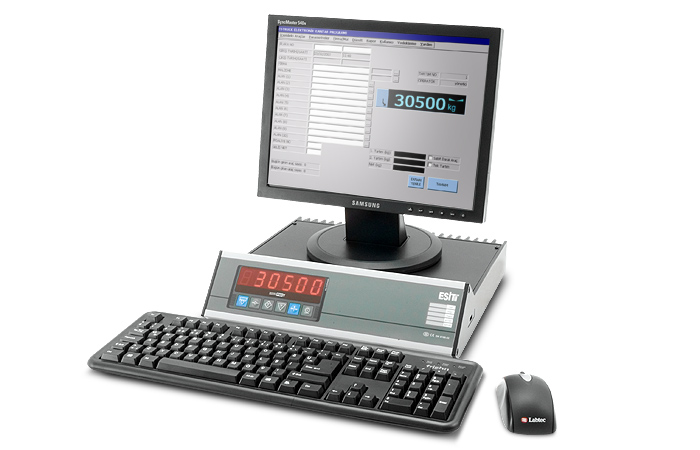

A high-performance member of the PWI series, PWI-T computer-based weighing terminal is used in corporations with electronic truck scales, which operate in industrial environments. It is quite reliable and serviceable because it uses a flash-disk instead of a hard-disk. Connected to a monitor, a keyboard and a printer, PWI-T meets all customer requirements with its Windows CE based, built-in truck scale program, which features user-friendly menus making the device simple to use. Its extensive memory is capable of handling frequent entries and exits.

The terminal produces a ticket which indicates company name, license plate number, entry-exit date and time, sequence number as well as user-definable data fields. PWI-T offers the possibility to generate and print reports of the information stored for a certain date range and in a desired arrangement (by license plate number, by material, by customer, etc.). It can also be connected to such hardware equipment as modems and barcode readers.

Features;

  • Hard aluminium housing for desktop use

  • 6-digit red LED weight display

  • Dust and humidity-proof membrane keyboard with tact keys

  • Taring, zeroing, function and adjustment keys

  • Capability to connect to a second weighing terminal

  • Capability to connect to another computer via serial output

  • Battery-protected non-volatile memory

  • Capability to connect to a barcode reader

  • Remote display output

  • RS232 serial output

  • USB connection

  • Ethernet connection

Accessories:

  • RD Remote Display

Specifications Description
Accuracy
Accuracy class (OIML approved) 6000 (III)
Input sensitivity 0.5µV/digit
Sensitivity 0.005%
Zero and gain stability 1.2ppm/°C
A/D converter 24bit Sigma-Delta
Digital filter Adjustable numerical filtering
Reading frequency 6-100Hz
Loadcell
Number of Loadcells allowed 10 (350Ω)
Analog input range ±10mV/V
Excitation voltage 10V DC
Environment
Operating temperature range (OIML approved) -10°C to +40°C
Storage temperature range -20°C to +70°C
Operating voltage and power 90-264V AC – 60W
Operator handling and Display
Keyboard Dust and humidity-proof membrane keyboard with 6 tact type keys
Weight display 20 mm, 6-digit, 7-segment, red LED
Function display Centre-of-zero, no-motion, interval display
Program Indicator Standard LCD monitor
Housing
Material and protection class Aluminium-Steel, IP54
Weight 5 kg
Package weight and dimensions 6 kg, 44x44x16.5 cm
Communication Standard                                Optional
Serial communication output RS232                                                RS485/RS422
Parallel printer output √                                                          –
Binary (BCD) output –                                                            –
Remote display output √                                                          –
Digital input/output –                                                            –
Analog output –                                                            –

Areas of Use (Truck Scales / Weighbridges): HIPPO-S Modular Steel Platform Heavy Duty Truck Scale; DINO Pit Mounted Steel Weighing Platform; JU-S Pitless Mounted Steel Weighing Platform; CS Steel-Concrete Weighing Platform; CB Concrete Weighing Platform; RW Pit Wagon Scales (Single or Double). Also used in Automated Recognition Systems and Truck Scale Systems.
