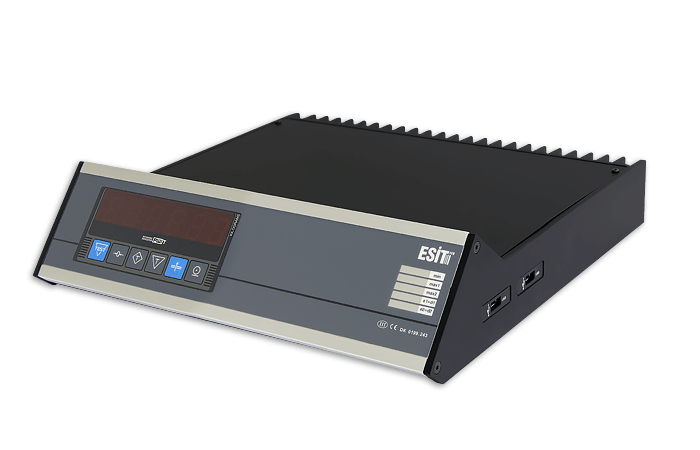

PWI-X DESK TYPE
PWI-X is a weighing terminal, which is used in vehicle scales and is integrated with computers. Equipped with high performance weighing functionalities of the PWI series, it is suitable for office environments where computers can be used.
Using a vehicle scale software program developed by PWI-X offers the possibility to access data over computer terminals and networks.
Features;
-
Hard aluminium housing for desktop use
-
6-digit red LED weight display
-
Dust and humidity-proof membrane keyboard with tact keys
-
Taring, zeroing, function and adjustment keys
-
Zeroing within the entire measurement range
-
Gain adjustment for load cell output
-
Excitation and output voltage display for load cell
-
Battery-protected non-volatile memory
-
Remote display output
-
RS232 serial output
Options:
Accessories:
• RD Remote Display
| Specifications | Value |
| Accuracy | |
| Accuracy class (OIML approved) | 6000d (III) |
| Input sensitivity | 0.5µV/digit |
| Sensitivity | 0.005% |
| Zero and gain stability | 1.2ppm/°C |
| A/D converter | 24bit Sigma-Delta |
| Digital filter | Adjustable numerical filtering |
| Reading frequency | 6-100Hz |
| Loadcell | |
| Number of Loadcells allowed | 10 (350ohm) |
| Analog input range | ±10mV/V |
| Excitation voltage | 10V DC |
| Environment | |
| Operating temperature range (OIML approved) | -10°C to +40°C |
| Storage temperature range | -20°C to +70°C |
| Operating voltage and power | 90-264V AC – 8W |
| Operator handling and Display | |
| Keyboard | Dust and humidity-proof membrane keyboard with 6 tact type keys |
| Weight display | 20 mm, 6-digit, 7-segment, red LED |
| Function display | Centre-of-zero, no-motion, interval display |
| Program Indicator | – |
| Housing | |
| Material and protection class | Aluminium-Steel, IP54 |
| Weight | 5 kg |
| Package weight and dimensions | 6 kg, 44x44x16.5 cm |
| Communication | Standard Optional |
| Serial communication output | RS232 RS422 / RS485 |
| Parallel printer output | – – |
| Binary (BCD) output | – 1+18bit |
| Remote display output | √ – |
| Digital input/output | – 4 inputs / 8 outputs (1А) |
| Analog output | – 4-20mA / 0-10V |
Areas of Use (Truck Scales / Weighbridges): HIPPO-S Modular Steel Platform Heavy Duty Truck Scale; DINO Pit Mounted Steel Weighing Platform; JU-S Pitless Mounted Steel Weighing Platform; CS Steel-Concrete Weighing Platform; CB Concrete Weighing Platform; RW Pit Wagon Scales (Single or Double).
