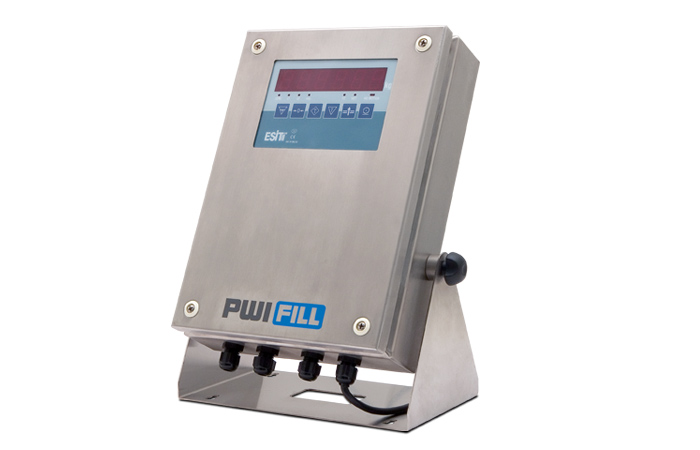

PWI-FILL STAINLESS STYLE BOX

In addition to being a weighing indicator, PWI-FILL of the PWI series also functions as a controller that manages weighing instruments used in bagging, filling and discharging applications. With stainless-steel housing that can be either mounted on a panel or used on desks, PWI-FILL offers resistance to dust, water and impacts and this makes it quite suitable for severe industrial conditions and for such sectors as food and chemicals.

Consisting of a single unit, PWI-FILL does not require an additional panel since it handles all the bagging, filling and discharging operations using its built-in software and hardware. It can be easily operated by connecting the relay outputs on the indicator to the filling control mechanisms. PWI-FILL can communicate with PLCs, computers, etc. thanks to its various industrial input and output options.

Features;

  • IP65, stainless steel housing

  • 20 mm, 6-digit LED weight display

  • Plastic membrane keyboard with click keys

  • Taring, zeroing, function and adjustment keys

  • RS232 serial output

  • 4-set relay output

Options:

Specifications Value
Accuracy
Accuracy class (OIML approved) 6000d (III)
Input sensitivity 0.5µV/digit
Sensitivity 0.005%
Zero and gain stability 1.2ppm/°C
A/D converter 24bit Sigma-Delta
Digital filter Adjustable numerical filtering
Reading frequency 6-100Hz
Loadcell
Number of Loadcells allowed 8 (350Ω)
Analog input range ±100mV/V
Excitation voltage 10V DC
Environment
Operating temperature range (OIML approved) -10°C to +40°C
Storage temperature range -20°C to +70°C
Operating voltage and power 220-240V AC / 12-36V DC - 10W
Operator handling and Display
Keyboard Dust and humidity-proof membrane keyboard with 6 tact type keys
Weight display 20 mm, 6-digit, 7-segment, red LED
Function display kg, Centre-of-zero, no-motion LEDs
Program Indicator –
Housing
Material and protection class Stainless Steel, IP65
Weight 3.6 kg
Package weight and dimensions 4.2 kg, 32x35x17.5 cm
Communication Standard                                Optional
Serial communication output RS232                                                RS485/RS422
Parallel printer output –                                                            –
Binary (BCD) output –                                                            –
Remote display output –                                                           √
Digital input/output 4 inputs / 4 outputs (10A) –
Analog output –                                                  4-20mA / 0-10V

Areas of Use: Industrial Scales (PU Palette Scales, MR Monorail Scales, CH Livestock Scales, TT Transpalette Weighers); Bagging Scales (BFB); Dosage Control Systems; Constant Flow Systems; Production Line Error Control Systems; Industries: Food, Chemistry & Petrochemistry, Cement & Construction, Mining, Iron & Steel.
