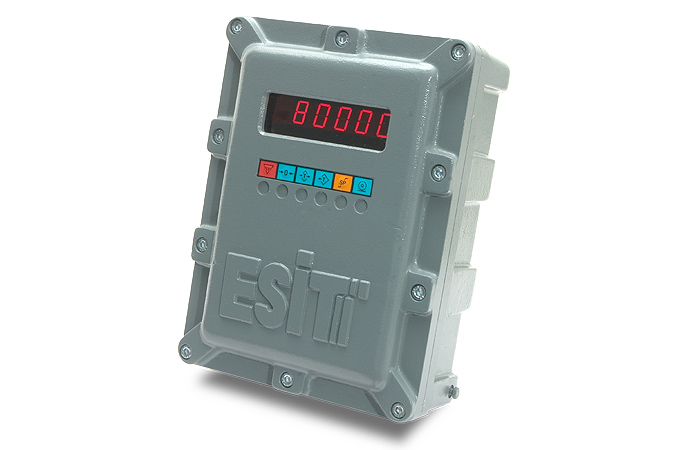

PWI-EX EX-PROOF BOX
With its Ex-Proof housing, the PWI-E indicator of the PWI series offers resistance to flames and impacts, which makes it quite suitable for such environments where flammable chemicals, gases and petroleum products are present.
PWI-E finds application as an indicator in electronic weighing instruments. It can be used alone in various automatic weighing applications, and tank weighing, filling, discharging, batching and bagging systems as well, thanks to its various industrial input and output options. With PWI-E, it is also possible to communicate with PLCs, computers, etc.
Features;
Ex Proof, aluminium cast housing
6-digit red LED weight display
Keyboard magnetically isolated from outside of the housing
Taring, zeroing, function and adjustment keys
Zeroing within the entire measurement range
Gain adjustment for load cell output
Excitation and output voltage display for load cell
Battery-protected non-volatile memory
RS232 serial output
Options:
Accessories:
• RD Remote Display
Technical Specifications:
| Specifications | Value |
| Accuracy | |
| Accuracy class (OIML approved) | 6000d (III) |
| Input sensitivity | 0.5µV/digit |
| Sensitivity | 0.005% |
| Zero and gain stability | 1.2ppm/°C |
| A/D converter | 24bit Sigma-Delta |
| Digital filter | Adjustable numerical filtering |
| Reading frequency | 6-100Hz |
| Loadcell | |
| Number of Loadcells allowed | 8 (350 ohm) |
| Analog input range | ±10mV/V |
| Excitation voltage | 10V DC |
| Environment | |
| Operating temperature range (OIML approved) | -10°C to +40°C |
| Storage temperature range | -20°C to +70°C |
| Operating voltage and power | 12-24V AC / 12-36V DC – 5W |
| Operator handling and Display | |
| Keyboard | Dust and humidity-proof membrane keyboard with 6 magnetic keys |
| Weight display | 20 mm, 6-digit, 7-segment, red LED |
| Function display | kg, Centre-of-zero, no-motion LEDs |
| Program Indicator | – |
| Housing | |
| Material and protection class | Aluminium, IP65 |
| Weight | 11.5 kg |
| Package weight and dimensions | 12 kg, 32x35x17.5 cm |
| Communication | Standard Optional |
| Serial communication output | – RS232 / RS485 / RS422 |
| Parallel printer output | – – |
| Binary (BCD) output | – 1+18 bit |
| Remote display output | – √ |
| Digital input/output | – 4 inputs / 8 outputs (1А) |
| Analog output | – 4-20mA / 0-10V |
Areas of Use: Truck Scales (Weighbridges) - HIPPO-S Modular Steel Platform, JU-S Pitless Mounted Steel Weighing Platform; Explosion Proof Systems; Tank Weighing Systems.
