ECI Digital Weighing Indicator
The new ECI Digital Weighing Indicator is designed for weighing with digital load cells and for use in vehicle scales. There are two different models of ECI Digital: designed for digital load cells with Modbus or Canbus output.

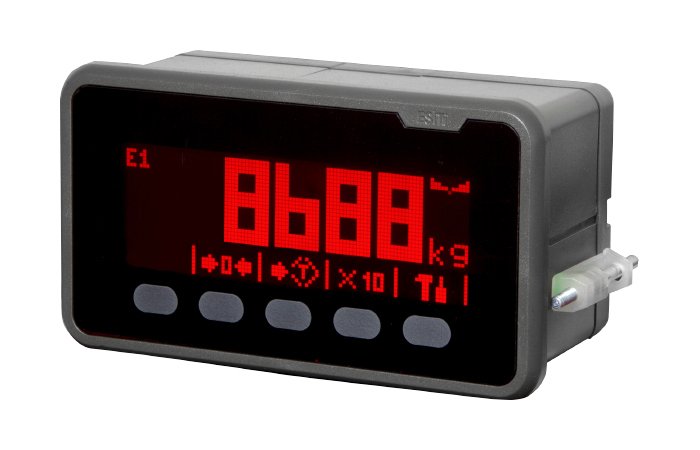

Although the ECI is designed for panel use, there are optional housings for column or desktop use. The ECI clearly displays the weighing process through various warnings and graphics on an IP65 enclosure-rated front panel with a touch screen and a new bright graphic display. With a standard built-in USB port, the ECI offers free firmware updates, backups, and reporting functions.
Features:
Weighing program with digital load cells
Communication with load cells via Modbus or Canbus protocols
Indicator, platform scale or vehicle scale modes
Angle correction function when used with CAD series digital load cells
Faulty load cell warning
Adaptive, indexed menu system
Easy connection with connectors (solder-free)
1600 Hz measurement / 800 Hz data output rate
USB reporting / update / backup / calibration backup
Possibility of moving calibration data to other devices
Multi-language option
gResolver multi-frequency vibration filtering technology
Easy calibration (mV, factory, coefficient, digital)
Intelligent plug and play type option cards and modular expansion
Galvanic isolated communication docks
Internal thermometer
Service menu (self-diagnostic)
Printer support
USB, RS232 serial communication and external display output
Options:
| Load Cell | |
| Reading Speed | CANbus 500 kb/s Modbus 115.200 baud |
| Number of load cells that can be fed | 16 pcs |
| Excitation voltage | 12V |
| Environment | |
| Operating temperature range (OIML Approved) | -10°C to +40°C |
| Storage temperature range | -20°C to +70°C |
| Operating voltage and power | 12-24V DC, 5W |
| Operator Handling and Display | |
| Keyboard | 5 Touch keys, special function according to situation |
| Weight Display | 4.5“ Bright Graphic Display |
| Function Display | Gross, net, stable, zero (g, kg, t, lb, lt, mV/V, m3) |
| Program Indicator | Weighing Program |
| Housing | |
| Material and protection class | Impact-resistant plastic (PC), IP54 (Front Panel IP65) |
| Weight | 0.36 kg (Standard) |
| Package weight and dimensions | 0.55 kg, 18×12.5×11 cm |
| Communication | Standard Optional |
| Serial communication output | RS232 RS485 / RS422, Profinet IO, Ethernet IP, Profibus, Modbus TCP |
| Parallel printer output | Serial printer – |
| Binary (BCD) output | – 1+19 bit |
| Remote Display output | √ – |
| Digital input/output* | – 4 in / 4 out (2A) EXP module (16 out) |
| Analog Output | – 4-20mA / 0-10V (16bit) |
| Built-in Relay | – Up to 2 4-Relay Cards |
* BCD and EXP modules cannot be used together.
