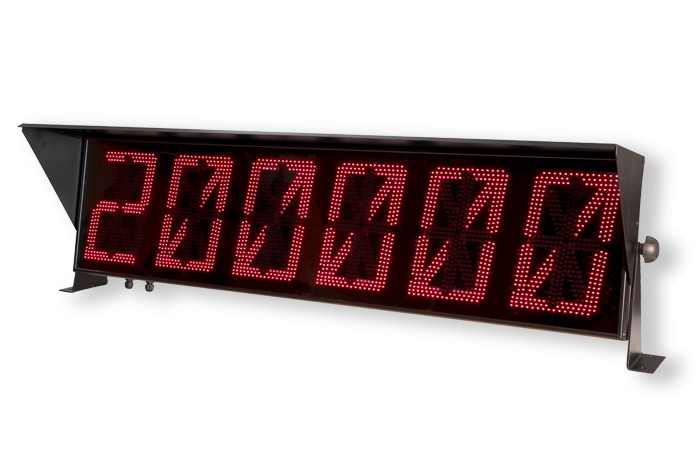

RD-210 REMOTE DISPLAY
Multi purpose RD series displays are the perfect solution for reading of truck scales, crane scales and field process’ from a remote location. There are various models with character sizes from 20mm -up to 210 mm in height.
| Environment | |
| Excitation voltage | 19 V DC |
| Operating voltage and power | 19 V DC, 5.5 W |
| Operating temperature range | -20°C +50°C |
| Storage temperature range | -20°C +50°C |
| Operator handling and Display | |
| Display | Numerical |
| Character size | 210 mm |
| Character width | 130 mm |
| Number of characters | 6 |
| Housing | |
| Protection class | IP54 |
| Material | Aluminium |
| Weight | 9.8 kg |
| Package weight | 12 kg |
| Communication | |
| Communication | RS232 / RS485 |
